Description

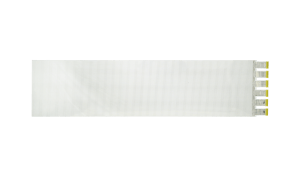

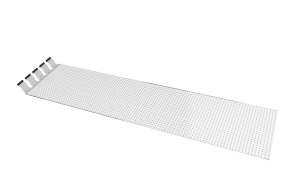

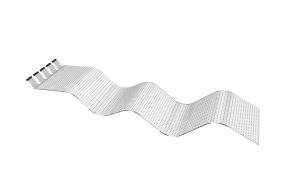

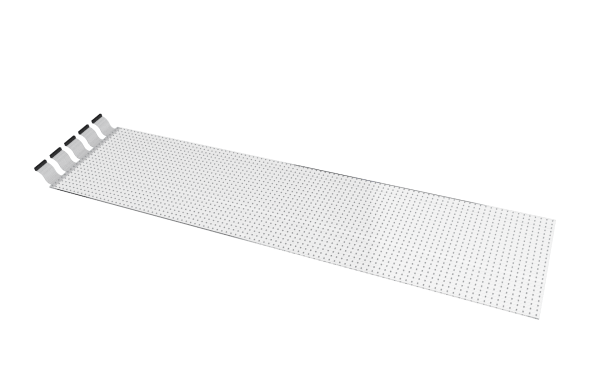

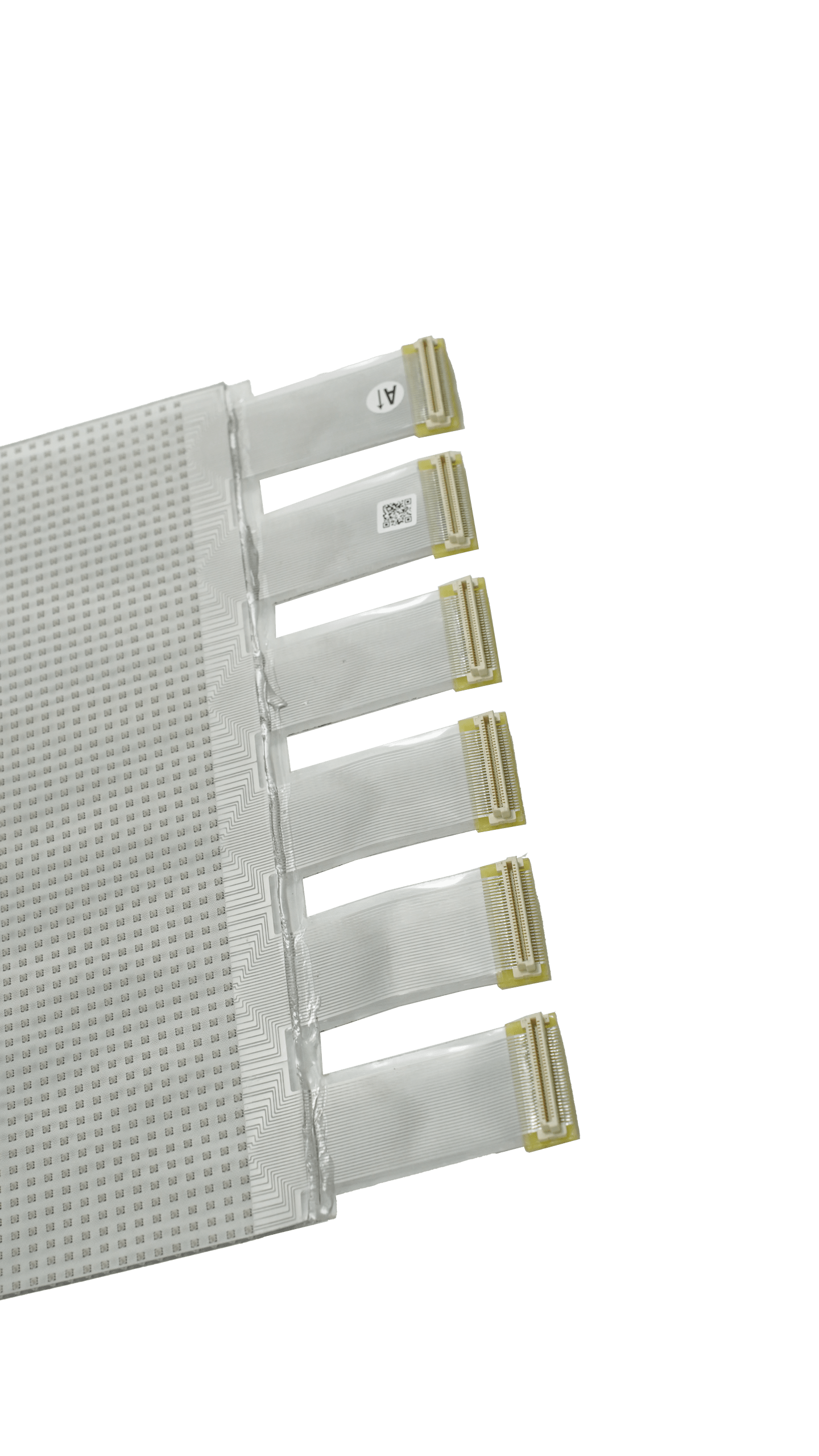

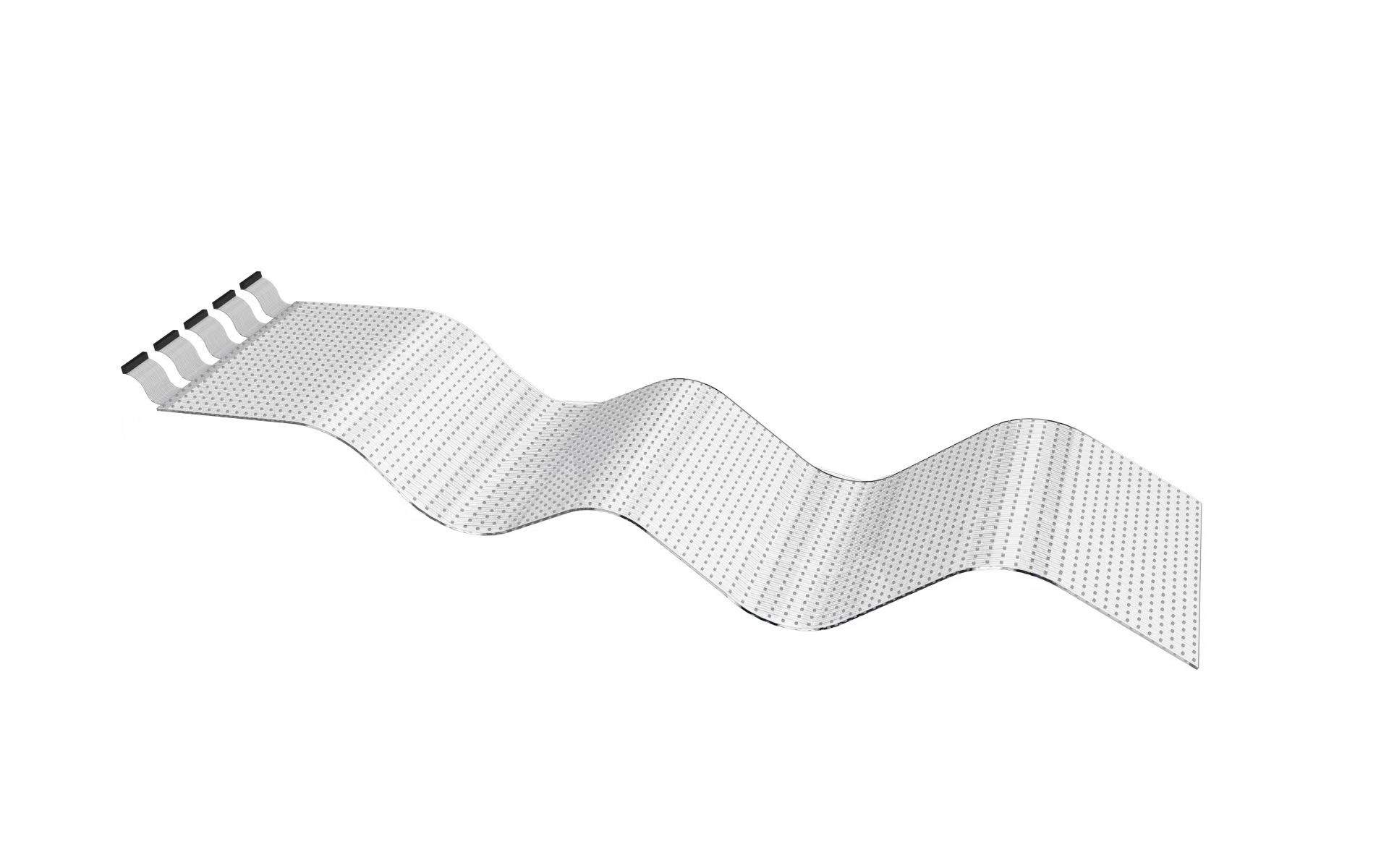

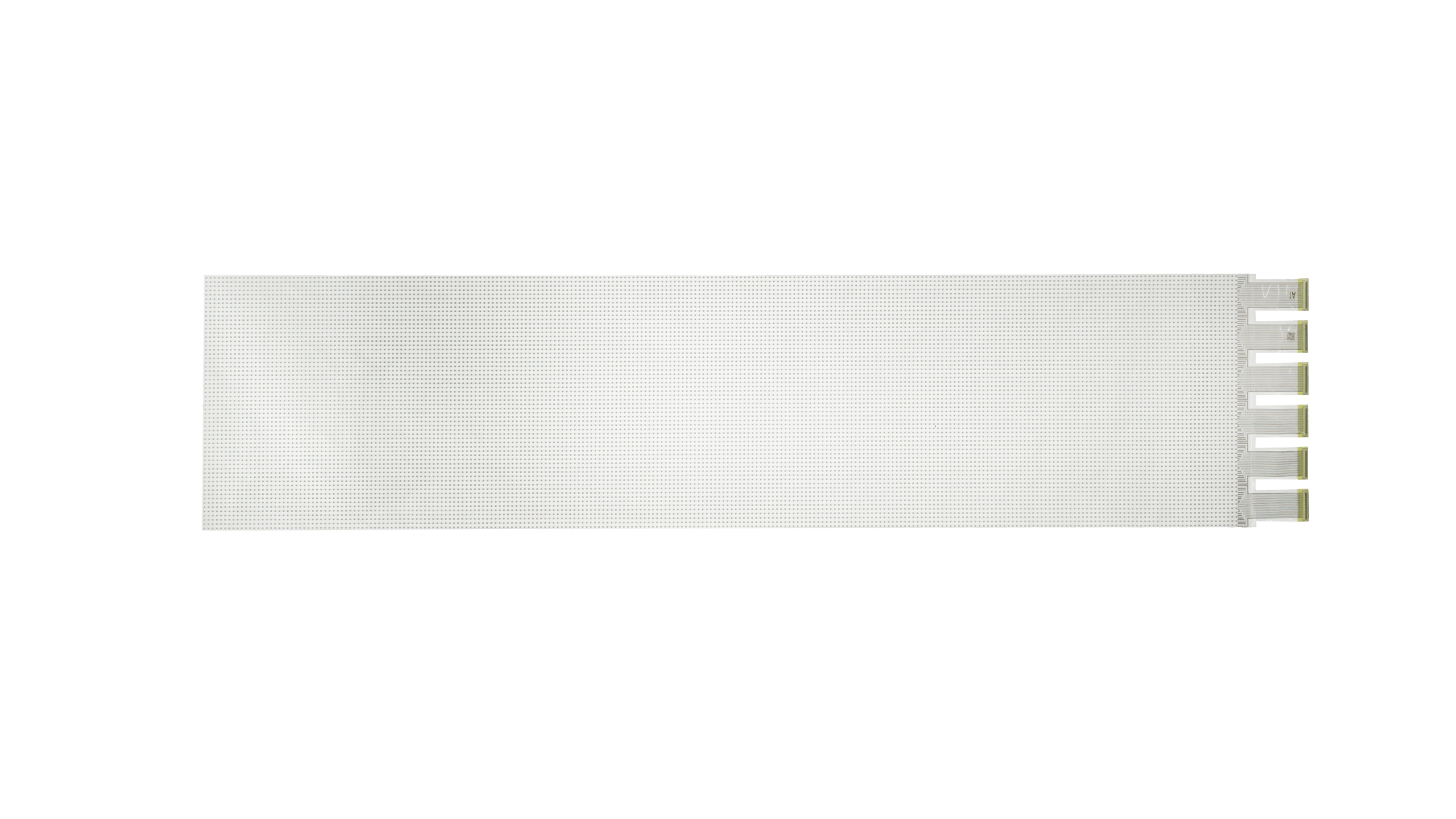

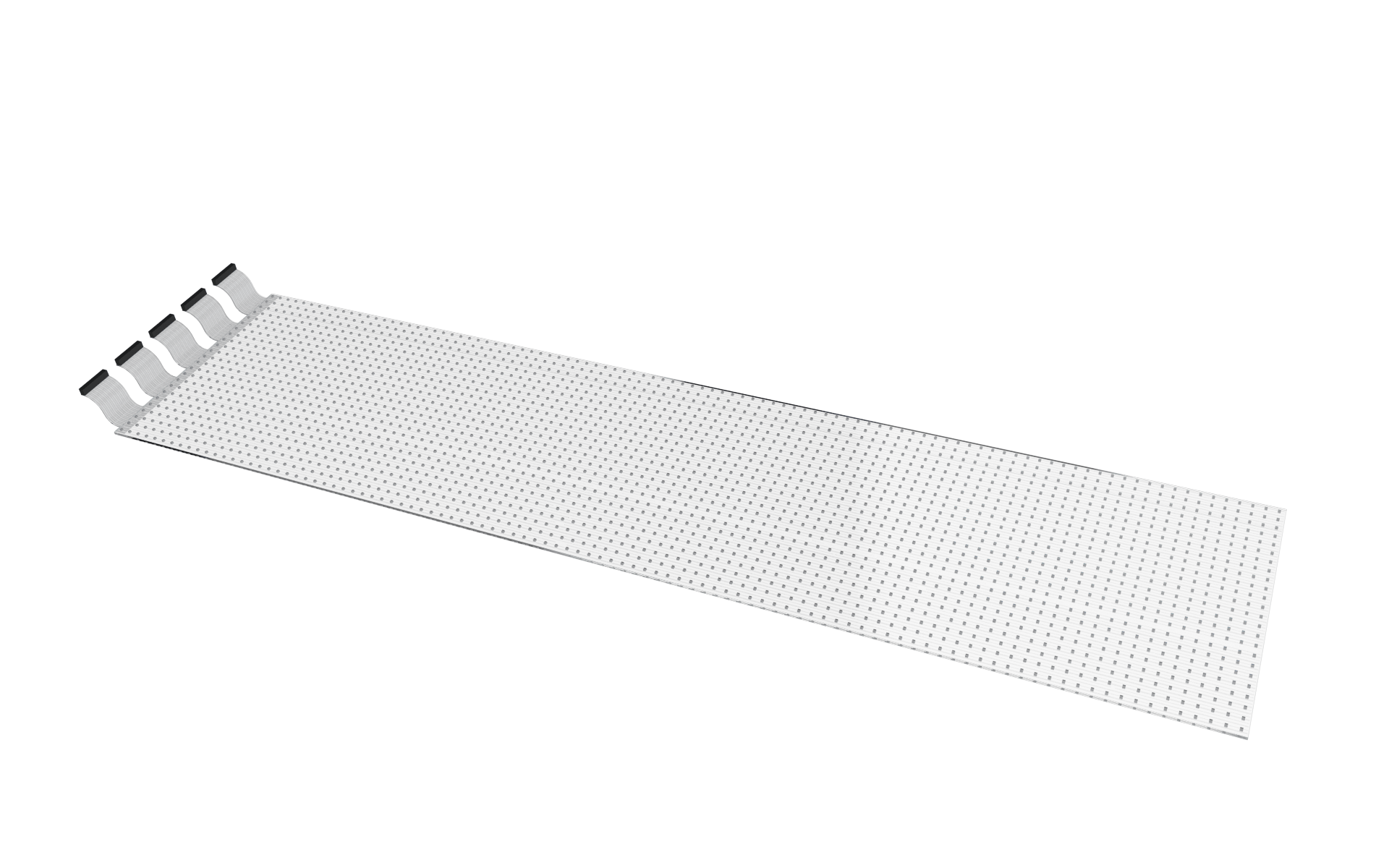

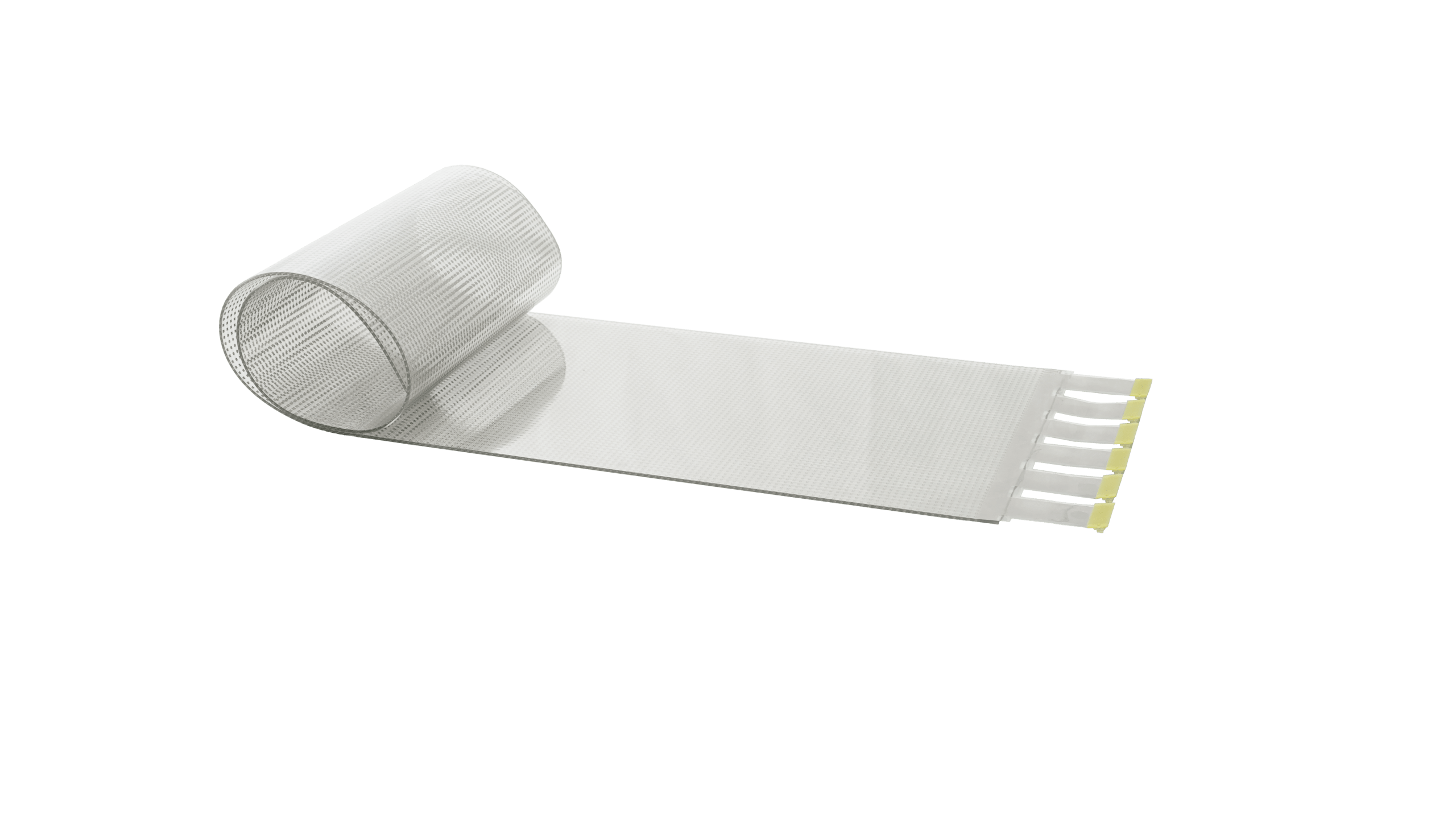

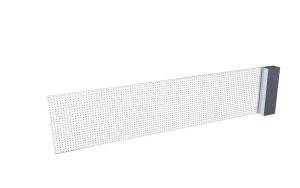

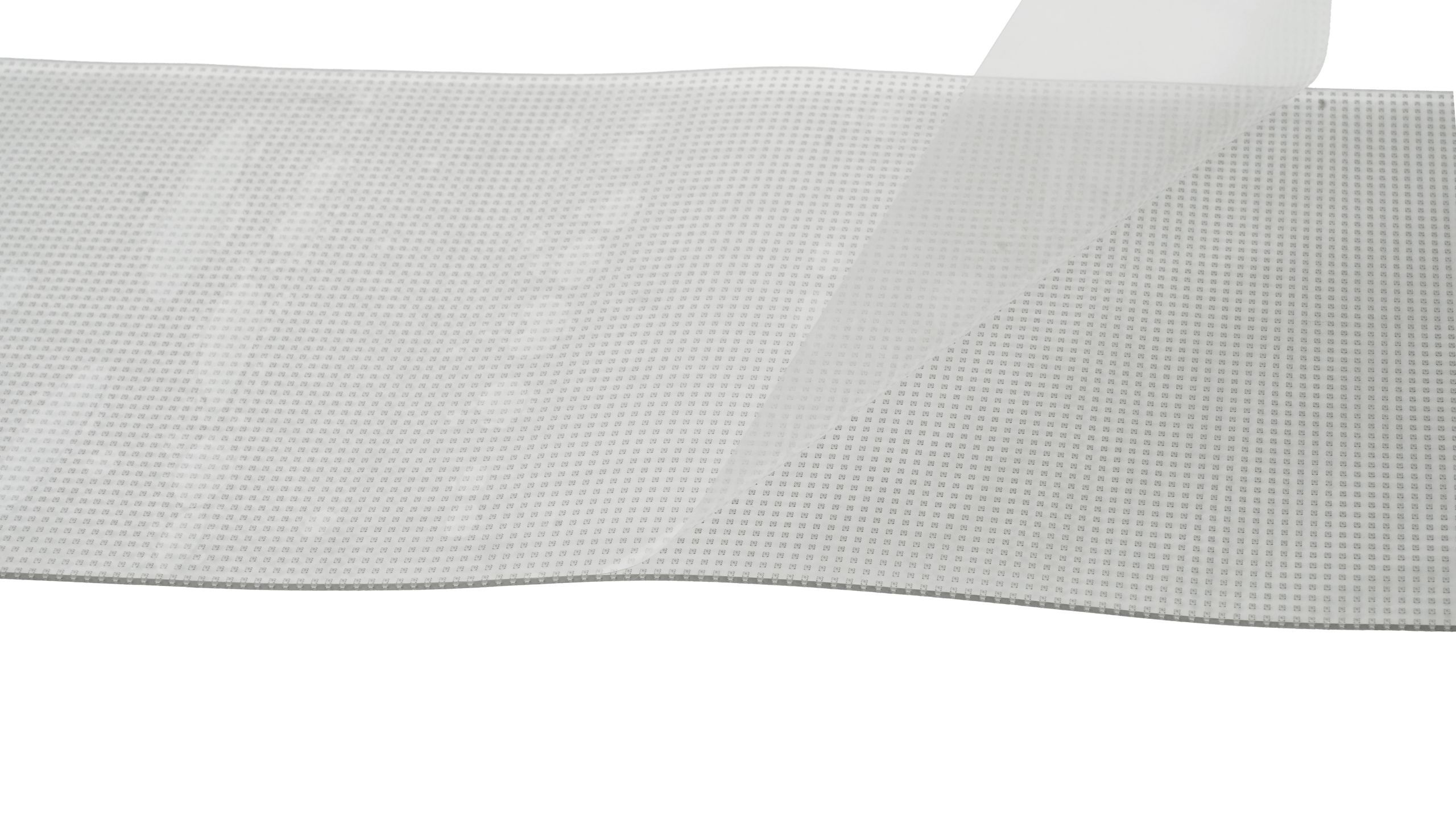

LED Flexible Film Screen for Glass windows
| Product specification | P4-4 |
| Pixel pitch | 4mm*4mm（x*y） |
| Pixel | 62500p;points/m2 |
| LED specification | SMD1313 (light drive in one) |
| Pixel composition | 1R1G1B |
| Module Size | 1000mm*240mm |
| Module Resolution | 250*60 |
| Pixel resolution | 250*250/㎡ |
| Permeability | ≥85% |
| Box wiring mode | Internal wiring (clean back) |
| Module weight | ≤ 9.5KG/m2 |
| White balance brightness | ≥1500cd/㎡ |
| Peak power consumption | 800 W/㎡ |
| Average power consumption | About 240 W/㎡ (depending on the video source) |
| Refresh frequency | ≥3840HZ |
| Grayscale level | 16Bit |
| Brightness control level | Grade 0-255 |
| Color temperature | 3200K-8500K (adjustable) |
| Frame change frequency | ≥60Hz |
| Viewing angle | H-H140 degrees V-V140 degrees |
| Input signal | DVI VGA, composite video |
| Control screen mode | Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen) |
| Protection grade | IP30 |
| Power supply requirements | AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V) |
| working temperature | （-0°-50°C） |
| Theoretical service life | 100000 hours |
| Product specification | P5 |
| Pixel pitch | 5mm*5mm（x*y） |
| Pixel | 40000p;points/m2 |
| LED specification | SMD1313(light drive in one) |
| Pixel composition | 1R1G1B |
| Module Size | 1000mm*240mm |
| Module Resolution | 200*48 |
| Pixel resolution | 200*200/㎡ |
| Permeability | ≥85% |
| Box wiring mode | Internal wiring (clean back) |
| Module weight | ≤ 9.5KG/m2 |
| White balance brightness | ≥2000cd/㎡ |
| Peak power consumption | 800W/㎡ |
| Average power consumption | About 240 W/㎡ (depending on the video source) |
| Refresh frequency | ≥3840HZ |
| Grayscale level | 16Bit |
| Brightness control level | Grade 0-255 |
| Color temperature | 3200K-8500K (adjustable) |
| Frame change frequency | ≥60Hz |
| Viewing angle | H-H140 degrees V-V140 degrees |
| Input signal | DVI VGA, composite video |
| Control screen mode | Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen) |
| Protection grade | IP30 |
| Power supply requirements | AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V) |
| working temperature | （-0°-50°C） |
| Theoretical service life | 100000 hours |
| Product specification | P6-6 |
| Pixel pitch | 6mm*6mm（x*y） |
| Pixel | 27556p;points/m2 |
| LED specification | SMD2121 (light drive in one) |
| Pixel composition | 1R1G1B |
| Module Size | 1000mm*240mm |
| Module Resolution | 166*40 |
| Pixel resolution | 166*166/㎡ |
| Permeability | ≥85% |
| Box wiring mode | Internal wiring (clean back) |
| Module weight | ≤ 9.5KG/m2 |
| White balance brightness | ≥2000-2500cd/㎡ |
| Peak power consumption | 800 W/㎡ |
| Average power consumption | About 240 W/㎡ (depending on the video source) |
| Refresh frequency | ≥3840HZ |
| Grayscale level | 16Bit |
| Brightness control level | Grade 0-255 |
| Color temperature | 3200K-8500K (adjustable) |
| Frame change frequency | ≥60Hz |
| Viewing angle | H-H140 degrees V-V140 degrees |
| Input signal | DVI VGA, composite video |
| Control screen mode | Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen) |
| Protection grade | IP30 |
| Power supply requirements | AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V) |
| working temperature | （-0°-50°C） |
| Theoretical service life | 100000 hours |
