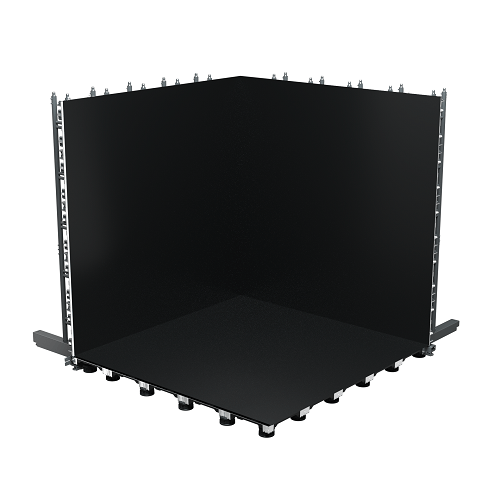

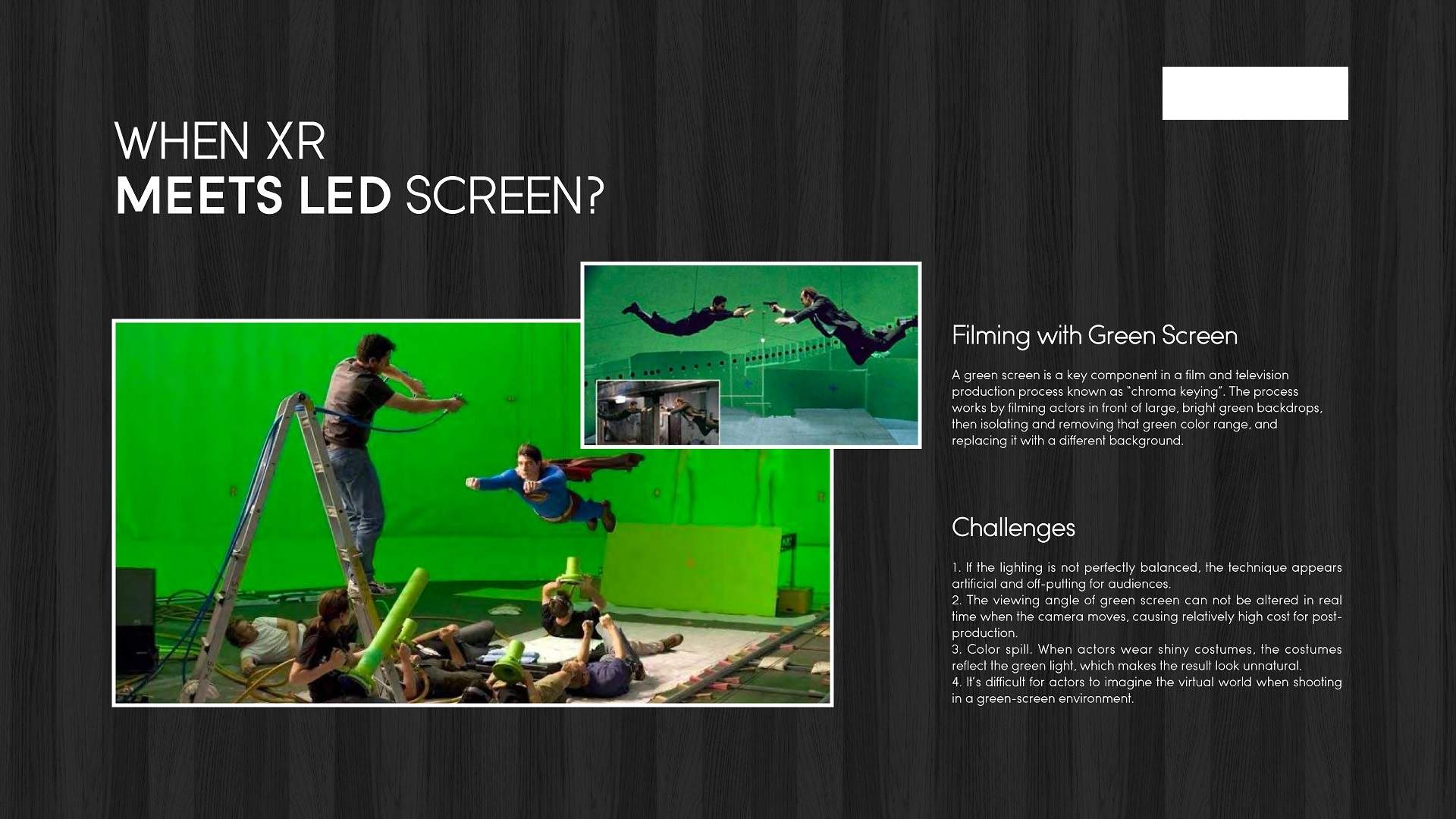

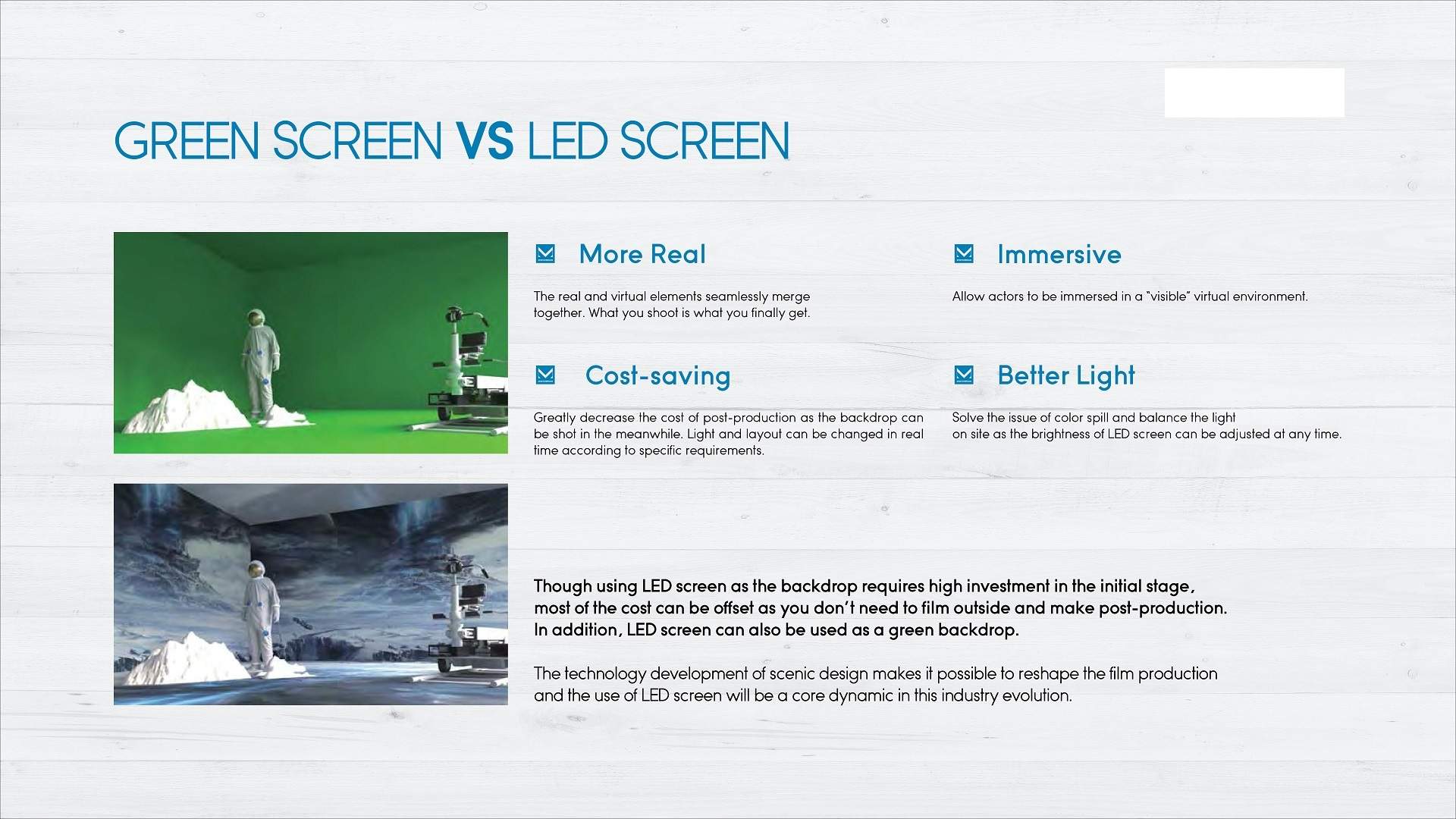

XR/VP Stage LED Volume Solution

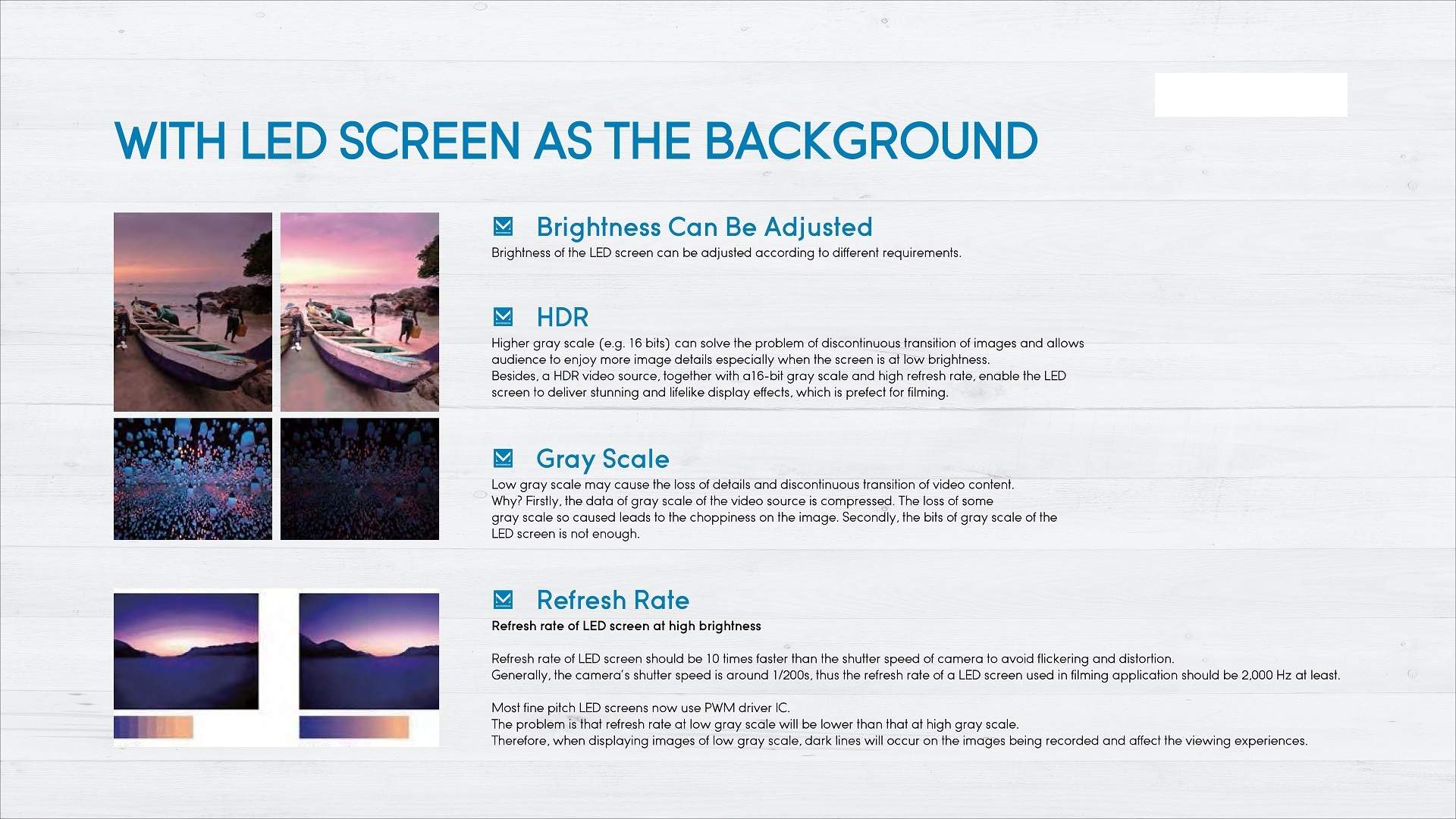

What really matters?

1. Low Scan Rate:1/8S and 1/16S
2. High Refresh Rate:7680HZ Max @ 60HZ Frame

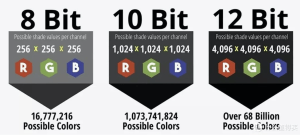

3. DCI-P3 99% Color Gamut and 18 Bit Min Color Depth
4. 160°Wide Viewing Angle

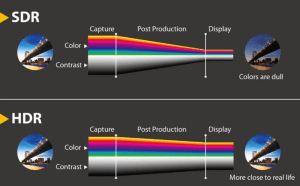

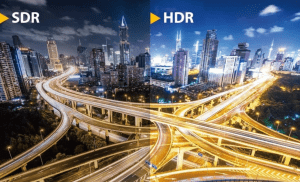

5. HDR10 & HLG
6. Extremely Low Moire Issues
7. Uniformity Color at Different Viewing Angle
8. Color Calibration and Smart Calibration Sensors on Modules
9. Gen-Lock Supported



Ruishen LED Panel is made of Low scan rate 1/8S. The lower the scan rate,the better performance and the more expensive it will be.

It won’t have noise and shooting lines with low scan rate panels.

But you will ask WHY???

1. Low scan rate of led panel will require better quality LEDS,driver ICS and PCB with multi-layers and better quality.

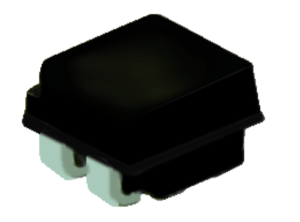

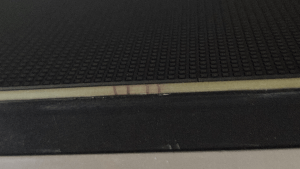

(1) .Top quality LEDS:Our panel is made of top quality leds with black face surface and add matte grid,and wider color gamut which will bring higher contrast ratio.

①Remain with AEC-Q101 standard, high reliability

②Black package provides better contrast

③160°wide viewing angle and better appearance consistency

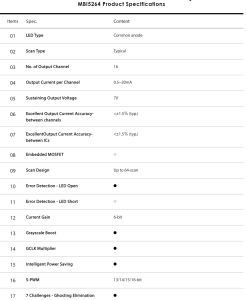

• .Top quality driver IC. Ruishen LED Panel is made of Macroblock MBI5264,which has S-PWM function will reduce a lot of the flickering issue when the led panel is displaying low brightness content and improves the image fidelity.

The high quality visual performance of MBI5264 makes it ideal for LED displays on virtual production or green screen replacement in TV and film industry.

MBI5264 is designed for LED video applications using internal Pulse Width Modulation (PWM) control with selectable 13-bit / 14-bit / 15-bit / 16-bit color depth. MBI5264 features a 16-bit shift register which converts serial input data into each pixel’s gray scale of the output port. Sixteen regulated current ports are designed to provide uniform and constant current sinks for driving LEDs with a wide range of VF variations. The output current can be preset through an external resistor. The innovative architecture with embedded SRAM is designed to support up to 1:64 time-multiplexing applications. Users only need to send the whole frame data once and to store in the embedded SRAM of the LED driver, instead of sending every time when the scan line is changed. It helps to save the data bandwidth and to achieve high grayscale with very low data clock rate. With scan-type Scrambled-PWM (S-PWM) technology, MBI5264 enhances PWM by scrambling the “on” time of each scan line into several “on” periods and sequentially drives each scan line for a short “on” period. The enhancement equivalently increases the visual refresh rate of scan-type LED displays.

MBI5264 drives the corresponding LEDs to the brightness specified by image data. With MBI5264, all output channels can be built with 16-bit color depth. When building a 16-bit color depth video, S-PWM technology reduces the flickers and improves the image fidelity.

Through compulsory error detection, MBI5264 detects individual LED for open-circuit errors without extra components. MBI5264 equipped an innovative cross elimination function, and it solves the cross phenomenon induced by failure LEDs. Besides, integrated ghost elimination and high contrast interference circuit eases the ghost problems and improve image contrast.

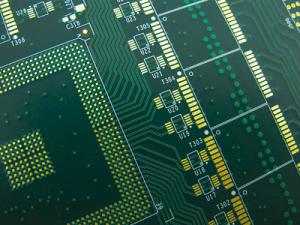

 (3).Multi-layers PCB Board. The low scan rate panels will need top quality PCB to ensure the stability of LEDS lighting,driver ICs,and high brightness displaying.

Our PCB is made of HDI standard PCB board and 2.0mm minimum thickness.

HDI stands for High Density Interconnector. A circuit board which has a higher wiring density per unit area as opposed to conventional board is called as HDI PCB. HDI PCBs have finer spaces and lines, minor vias and capture pads and higher connection pad density. It is helpful in enhancing electrical performance and reduction in weight and size of the equipment. HDI PCB is the better option for high-layer count and costly laminated boards.

(4). Compatible with Brompton system (Novastar system as an option).

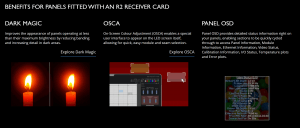

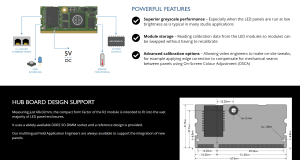

Ruishen led panel are assembled with Brompton R2 Receiver card.The R2 is the most powerful Tessera receiver card ever.

Supporting a 262k pixel capacity, it is perfect for all types of LED fixtures, even those with very high resolutions.

The R2 takes a new module-based approach to LED panel receiver card design and uses cutting-edge technology to be the perfect combination of capacity, size and features.

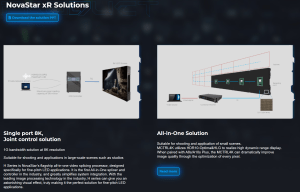

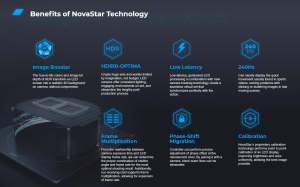

Also, the Novastar technology provides a good performance for the XR solution too.

. Wide Color Gamut DCI-P3

Ruishen LED Panels’ color gamut can reach ≥99% DCI-P3 (Real data) and HDR10 & HLG. And also have options with 95-98% DCI-P3 led panels which are cheaper. It will have a sharper image or video displaying when it’s high brightness and low brightness.

• . Wide viewing angle.

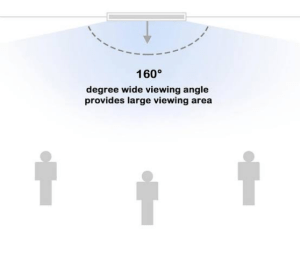

Ruishen led panels have 160° vertically and 160° horizontally viewing angles.

Recommended Proposal for Different Application Projects

Application	Dimension	LED Ceiling Pixel Pitch	LED Floor	LED Wall	Key Parameters
			Pixel Pitch	Pixel Pitch	Brightness	Refresh Rate	Color Gamut	LED Wall	LED Floor	Gen-Lock
								Viewing Angle	Viewing Angle
Film-making Studio	270° Curved LED Cave	RS3.9	RS2.9 FL Or RS2.6 FL	RS2.6 8S Or RS1.9 8S	Ceiling:500-5000nits Floor:500-2000nits Wall:500-2000nits	≥3840hz Or ≥7680hz	DCI-P3	H:160° V:160°	H:160° V:160°	Yes
TV or Advertising Studio (Such as HBO/Nextfix)	18×5×4.5m 135° Curved Tetrahedron	RS3.9	RS2.9 FL Or RS2.6 FL	RS2.6 8S Or RS1.9 8S	Ceiling:500-5000nits Floor:500-2000nits Wall:500-2000nits	≥3840hz Or ≥7680hz	DCI-P3	H:160° V:160°	H:160° V:160°	Yes
Concert Virtual Scene Shooting	18×5×4.5m 135° Curved Tetrahedron	RS3.9	RS2.9 FL Or RS2.6 FL	RS2.6 8S Or RS1.9 8S	Ceiling:500-5000nits Floor:500-2000nits Wall:500-2000nits	≥3840hz Or ≥7680hz	Normal	H:160° V:160°	H:160° V:160°	Optional
Tiktok Video Shooting	6×6×3m Vertical Angle Trihedron	RS3.9	RS2.9 FL Or RS2.6 FL	RS2.6 8S Or RS1.9 8S	Ceiling:500-5000nits Floor:500-2000nits Wall:500-2000nits	≥3840hz	Normal	H:140° V:140°	H:140° V:140°	Optional
Mini Demo Studio	3×3×3m Vertical Angle Trihedron	RS3.9	RS2.9 FL Or RS2.6 FL	RS2.6 8S Or RS1.9 8S	Ceiling:500-5000nits Floor:500-2000nits Wall:500-2000nits	≥3840hz	Normal	H:140° V:140°	H:140° V:140°	Optional
TV Show or Broadcast Studio	18×5×4.5m 135° Curved Tetrahedron	RS3.9	RS2.9 FL Or RS2.6 FL	RS2.6 8S Or RS1.9 8S	Ceiling:500-5000nits Floor:500-2000nits Wall:500-2000nits	≥3840hz	Normal	H:140° V:140°	H:140° V:140°	Optional
E-Sport Game Studio	18×5×4.5m 135° Curved Tetrahedron	RS3.9	RS2.9 FL Or RS2.6 FL	RS2.6 8S Or RS1.9 8S	Ceiling:500-5000nits Floor:500-2000nits Wall:500-2000nits	≥3840hz Or ≥7680hz	DCI-P3	H:160° V:160°	H:160° V:160°	Optional



LED Panel Parameters

RS1.9 8S
Basic Info	Product Name	RS1.9 8S
	Pixel Pitch	1.953mm
Technical Info	Pixel Density	262,144 pixels/m²
	LED	3 IN 1 SMD1010 Black Face
	Viewing Angle	H160°/V160°
	Brightness	200-1000 nits
	Drive Scan Rate	1/8S
	Drive IC	MBI
	Refresh Rate	7680HZ @ 60HZ Frame
	Color Depth	18Bits gray scale
	Control System	Brompton/Novastar
	LED Panel Dimension	500×500×75mm /500×1000×75mm
	LED Panel Resolution	256×256
	LED Panel Unit Weight	8KGS (18 lbs)/ 11.5KGS
	Working Voltage	100-240V AC 50~60HZ
	Max Power Consumption	150W/Panel
	Average Power Consumption	50W/Panel
	IP Grace	IP43/IP43
	Curved Angle	-10°~+10° Concave/Convex
Accessories	500mm Hanging Rigging Bar/Ground Bar
	1000mm Hanging Rigging Bar/Ground Bar
	Ground Stacking Truss
	Road Case for LED Panels
	Road Case for Truss



RS1.9 1/16S
Basic Info	Product Name	RS1.9 1/16S
	Pixel Pitch	1.953mm
Technical Info	Pixel Density	262,144 pixels/m²
	LED	3 IN 1 SMD1010 Black Face
	Viewing Angle	H160°/V160°
	Brightness	200-1000 nits
	Drive Scan Rate	1/16S
	Drive IC	MBI5264
	Refresh Rate	7680HZ @ 60HZ Frame
	Color Depth	18Bits gray scale
	Control System	Brompton/Novastar
	LED Panel Dimension	500×500×75mm /500×1000×75mm
	LED Panel Resolution	256×256
	LED Panel Unit Weight	8KGS (18 lbs)/ 11.5KGS
	Working Voltage	100-240V AC 50~60HZ
	Max Power Consumption	150W/Panel
	Average Power Consumption	50W/Panel
	IP Grace	IP43/IP43
	Curved Angle	-10°~+10° Concave/Convex
Accessories	500mm Hanging Rigging Bar/Ground Bar
	1000mm Hanging Rigging Bar/Ground Bar
	Ground Stacking Truss
	Road Case for LED Panels
	Road Case for Truss





RS2.6 8S
Basic Info	Product Name	RS2.6 8S
	Pixel Pitch	2.6mm
Technical Info	Pixel Density	147,456 pixels/m²
	LED	3 IN 1 SMD1515 Black Face
	Viewing Angle	H160°/V160°
	Brightness	200-2000 nits
	Drive Scan Rate	1/8S
	Drive IC	MBI5264
	Refresh Rate	7680HZ @ 60HZ Frame
	Color Depth	18Bits gray scale
	Control System	Brompton/Novastar
	LED Panel Dimension	500×500×75mm /500×1000×75mm
	LED Panel Resolution	192×192
	LED Panel Unit Weight	8KGS (18 lbs)/ 11.5KGS
	Working Voltage	100-240V AC 50~60HZ
	Max Power Consumption	150W/Panel
	Average Power Consumption	50W/Panel
	IP Grace	IP43/IP43
	Curved Angle	-10°~+10° Concave/Convex
Accessories	500mm Hanging Rigging Bar/Ground Bar
	1000mm Hanging Rigging Bar/Ground Bar
	Ground Stacking Truss
	Road Case for LED Panels
	Road Case for Truss



RS2.6 16S
Basic Info	Product Name	RS2.6 16S
	Pixel Pitch	2.6mm
Technical Info	Pixel Density	147,456 pixels/m²
	LED	3 IN 1 SMD1515 Black Face
	Viewing Angle	H160°/V160°
	Brightness	200-2000 nits
	Drive Scan Rate	1/16S
	Drive IC	MBI5264
	Refresh Rate	7680HZ @ 60HZ Frame
	Color Depth	18Bits gray scale
	Control System	Brompton/Novastar
	LED Panel Dimension	500×500×75mm /500×1000×75mm
	LED Panel Resolution	192×192
	LED Panel Unit Weight	8KGS (18 lbs)/ 11.5KGS
	Working Voltage	100-240V AC 50~60HZ
	Max Power Consumption	150W/Panel
	Average Power Consumption	50W/Panel
	IP Grace	IP43/IP43
	Curved Angle	-10°~+10° Concave/Convex
Accessories	500mm Hanging Rigging Bar/Ground Bar
	1000mm Hanging Rigging Bar/Ground Bar
	Ground Stacking Truss
	Road Case for LED Panels
	Road Case for Truss



RS2.9 FL
Basic Info	Product Name	RS2.9 FL
	Pixel Pitch	2.976mm
Technical Info	Pixel Density	112,896 pixels/m²
	LED	3 IN 1 SMD1415
	Viewing Angle	H140°/V140°
	Brightness	200-2000 nits
	Drive Scan Rate	1/16S or 1/28S
	Drive IC	MBI
	Refresh Rate	3840HZ @ 60HZ Frame
	Color Depth	18Bits gray scale
	Control System	Novastar
	LED Panel Dimension	500×500×75mm
	LED Panel Resolution	168×168
	LED Panel Unit Weight	55KGS/SQM
	Working Voltage	100-240V AC 50~60HZ
	Max Power Consumption	150W/Panel
	Average Power Consumption	50W/Panel
	IP Grace	IP65/IP43
	Curved Angle
Accessories	500mm Hanging Rigging Bar/Ground Bar
	1000mm Hanging Rigging Bar/Ground Bar
	Ground Stacking Truss
	Road Case for LED Panels
	Road Case for Truss



RS2.6 FL
Basic Info	Product Name	RS2.6 FL
	Pixel Pitch	2.604mm
Technical Info	Pixel Density	147,456 pixels/m²
	LED	3 IN 1 SMD1515
	Viewing Angle	H140°/V140°
	Brightness	200-1000 nits
	Drive Scan Rate	1/12S or 1/24S
	Drive IC	MBI
	Refresh Rate	3840HZ @ 60HZ Frame
	Color Depth	18Bits gray scale
	Control System	Novastar
	LED Panel Dimension	500×500×75mm
	LED Panel Resolution	192×192
	LED Panel Unit Weight	55KGS/SQM
	Working Voltage	100-240V AC 50~60HZ
	Max Power Consumption	150W/Panel
	Average Power Consumption	50W/Panel
	IP Grace	IP65/IP43
	Curved Angle
Accessories	500mm Hanging Rigging Bar/Ground Bar
	1000mm Hanging Rigging Bar/Ground Bar
	Ground Stacking Truss
	Road Case for LED Panels
	Road Case for Truss
