HD Small-Pitch Outdoor LED Video Wall 500×500mm 500×1000mm

HD Small-Pitch Outdoor LED Video Wall 500×500mm 500×1000mm

  • Common Cathode with Energy-Saving
    Common cathode is an energy-saving power supply technology for LED display, which can effectively solve the problems of high screen temperature and excessive power consumption of common anode circuit. the average temperature of the panel of the common cathode circuit is 15℃ lower than that of the traditional common anode circuit,and the power consumption is reduced by more than 20%.
  • Four-level energy-saving technology
    Class I dynamic energy saving: when the signal is not displayed, turn off the driving circuit of the constant current tube chip;
    Level II black screen energy saving: when the display screen is completely black, the static consumption current of the chip drops from 6mA to 0.6mA;
    Level III full-screen energy saving: when the low level is maintained for 300ms, the static consumption current of the chip drops from 6mA to 0.5mA;
    Class IV shunt power supply and step-down energy saving: the current first passes through the lamp bead, and then goes to the negative electrode of the IC, so that the forward voltage drop becomes smaller and the on-resistance becomes smaller.

Description

 Chapter 1  Product Introduction

  • Common Cathode with Energy-Saving
    Common cathode is an energy-saving power supply technology for LED display, which can effectively solve the problems of high screen temperature and excessive power consumption of common anode circuit. the average temperature of the panel of the common cathode circuit is 15℃ lower than that of the traditional common anode circuit,and the power consumption is reduced by more than 20%.
  • Four-level energy-saving technology
    Class I dynamic energy saving: when the signal is not displayed, turn off the driving circuit of the constant current tube chip;
    Level II black screen energy saving: when the display screen is completely black, the static consumption current of the chip drops from 6mA to 0.6mA;
    Level III full-screen energy saving: when the low level is maintained for 300ms, the static consumption current of the chip drops from 6mA to 0.5mA;
    Class IV shunt power supply and step-down energy saving: the current first passes through the lamp bead, and then goes to the negative electrode of the IC, so that the forward voltage drop becomes smaller and the on-resistance becomes smaller.
  • Real color, more realistic picture
    The refresh rate is up to 3840Hz, the contrast ratio is up to 5000:1, and the grayscale is above 16 bit. Red, green and blue three-in-one LED lamp beads, with good consistency, and the viewing angle can reach more than 140°.
  • Structure optimization, flexible installation
    Provide a variety of sizes of cabinets to choose from, different sizes of cabinets can be spliced with each other, and support various installation methods such as floor-standing, hoisting, and wall-mounted. Detachable power supply box, hard connection, front and rear maintenance, to meet the needs of different customers.
  • Driving Project
    It has the function of list up and down hidden, high refreshing ratio, dark dot amended in first line, low grayscale amended, color cast and spot amended, etc.
  • Stable and high protection
    Outdoor application products, IP66 protection grade, integrated all-aluminum design, with corrosion resistance, high melting point, flame retardant and fire resistance, moisture resistance and salt spray resistance, can operate normally in the seaside environment for a long time, strong environmental adaptability, outdoor all-weather work.
  • Stable and reliable performance
    Ultra-low temperature rise, low power consumption, low attenuation, and the good thermal conductivity of the aluminum module itself, make the heat dissipation effect of the whole screen better, no need to install air conditioners, high reliability and long service life.



Chapter 2  Appearance Structure

2.1 Appearance Picture

Picture 2-1  Module Appearance Picture

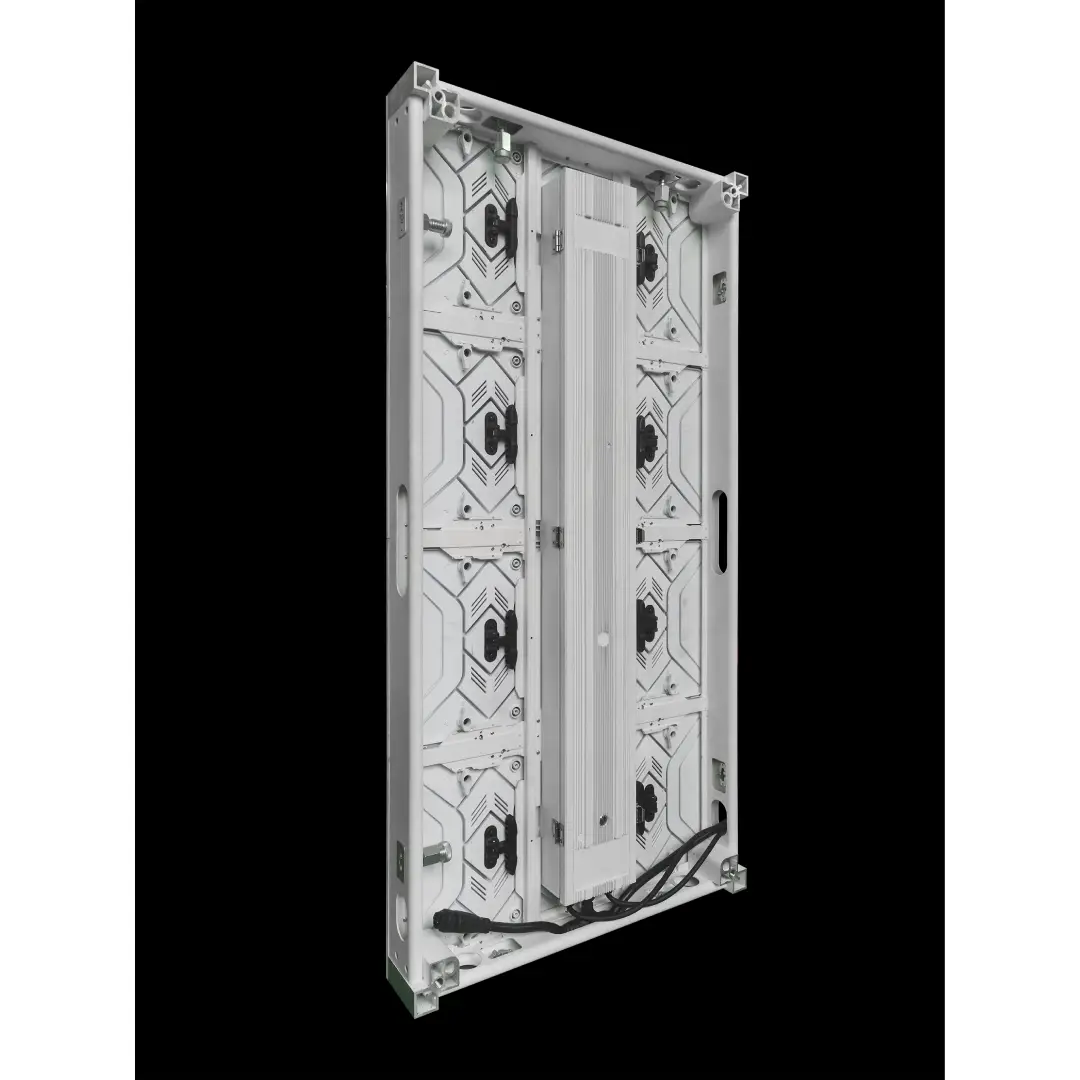

Picture 2-3  Cabinet Appearance Picture



500*500*83mm           500*750*83mm           500*1000*83mm





2.2 Technical Parameter

Item HD1.95 HD2.604 HD2.97 HD3.91 HD4.81
Pixel Composition(SMD) 1415 1415 1415 1921 1921
Pixel Pitch(mm) 1.95 2.604 2.97 3.91 4.81
Module Resolution(W×H) 128*128 96*96 84*84 64*64 52*52
Module Size(mm) 250*250*18 250*250*18 250*250*18 250*250*18 250*250*18
Module Weight(Kg) 0.7(plastic module),1(Aluminum module)
Module Qty/Cabinet 2*4 / 2*3 / 2*2 2*4 / 2*3 / 2*2 2*4 / 2*3 / 2*2 2*4 / 2*3 / 2*2 2*4 / 2*3 / 2*2
Cabinet Size(mm) 500*1000*83 / 500*750*83 / 500*500*83
Cabinet Resolution(W×H) 256*512/256*384

/256*256

192*384/192*288

/192*192

168*336/168*252

/168*168

128*256/128*192

/128*128

104*208/104*156/104*104
Cabinet Area(m²) 0.5 / 0.375 / 0.25 0.5 / 0.375 / 0.25 0.5 / 0.375 / 0.25 0.5 / 0.375 / 0.25 0.5 / 0.375 / 0.25
Cabinet Weight(Kg) 13.6 / 10.2 / 6.8 (plastic module),16 / 12 / 8(Aluminum module)
Cabinet Material Profile aluminum

Cabinet Material

Cabinet Density(dot/m²) 262144 147456 112896 65536 43264
IP Rating IP66 IP66 IP66 IP66 IP66
Single Dot Brightness Amended

Single Dot Color Amended

Yes Yes Yes Yes Yes
White Balance Brightness(cd/m²) 4500 4500 4500 4500 4500
Color Temperature(K) 6500-9000 6500-9000 6500-9000 6500-9000 6500-9000
Visual Angle(H/V) 140°/120° 140°/120° 140°/120° 140°/120° 140°/120°
Contrast Ratio 5000:1 5000:1 5000:1 5000:1 5000:1
The Max Power Consumption(W/m²) 700 700 700 700 700
Average Power Consumption(W/m²) 235 235 235 235 235
Input Voltage (V) 200-240 200-240 200-240 200-240 200-240
Maintenance Method Front and Rear Front and Rear Front and Rear Front and Rear Front and Rear
Frequency 50&60 50&60 50&60 50&60 50&60
IC Driving(Constant Current) 1/32s 1/24s 1/21s 1/16s 1/13s
Grayscale It is available within 65536
Refreshing Ratio(Hz) 3840 3840 3840 3840 3840
Color Processor 16bit 16bit 16bit 16bit 16bit
Lifespan(h) 100000 100000 100000 100000 100000
Work Temperature/Humidity -10℃-50℃/10%RH-98%RH(no condensation)

Work Temperature/Humidity

Storage Temperature/Humidity -20℃-60℃/10%RH-98%RH(no condensation)

Table 2-1  Technical Parameter



2.3  Packing List

Table 2-2  Packing List
Packing List Qty Unit
LED Display 1 Set
User Manual 1 Pcs
Approved Certificate 1 Pcs
Warranty Card 1 Pcs
Construction Notification 1 Pcs

2.4  Power Supply Configuration Project

Table 2-3  Power Supply Configuration Project
Power Supply Configuration Project
300W Power Supply Can load 4pcs modules

2.5 Accessories

Table 2-4  Accessories List

Accessories Name Picture
Assemble Accessories Power Supply、Single Cable



Screws、connecting sheet



Sleeve Piece、Key、T-type equipment for front and rear maintenance







Chapter 3  Interface Definition

Picture 3-1  Interface Picture(HUB75)



Table 3-1 Interface Definition
Pin Signal Function Pin Signal Function
1 R1 Red Data Signal 2 G1 Green Data Signal
3 B1 Blue Data Signal 4 GND Power Ground
5 R2 Red Data Signal 6 G2 Green Data Signal
7 B2 Blue Data Signal 8 E Row Decoding Signal
9 A Row Decoding Signal 10 B Row Decoding Signal
11 C Row Decoding Signal 12 D Row Decoding Signal
13 CLK Clock Signal 14 LAT Latch Signal
15 OE Enable Signal 16 GND Power Ground



Chapter 4  Installation

4.1 Kit Installation

picture 4-1 Hole Installation Diagram for Kit





4.2  Cabinet Installation

Picture 4-2 Cabinet Diagram

4.2.1 Front Installation for Cabinet

Picture 4-3 Components for Cabinet Installation
Picture 4-4 After finishing to install for cabinet front installation



4.3 Display Installation

4.3.1 Diagram for Cable Connection

Picture 4-4 Diagram for Connection

4.3.2 Networking Introduction

Picture4-5 Topographic Picture for networking

4.3.3 Installation Method

Installation Type Picture
Wall Mounted Installation
Floor Mounted Installation
Cantilever Type Installation
Hanging Type Installation



Chapter 5  User Manual

Table 6-1  Notification
Item Notification
Temperature Keep the work temperature within -10℃~50℃
Keep the storage temperature within -20℃~60℃
Humidity Keep the work humidity within 10%RH~98%RH
Keep the storage humidity within 10%RH~98%RH
Waterproof Cabinet: IP65; Module: IP66
Dust-proof Cabinet: IP65; Module: IP66
Anti-Electromagnetic radiation LED display shouldn’t put under the environment where has strong interference by electromagnetic radiation, which would be easy to picture display abnormal.
Electrostatic Prevention It should be ground connected well for power supply, cabinet, mental cover of display body, the resistance of ground connection<10Ω, to avoid making any damage to electric components.



Table 6-2 User Manual



Item User Manual
Electrostatic Protection The installer need wear electrostatic ring and electric gloves, each equipment should take ground connection well when installing.
Connection Type There are positive and negative electrode silk printed on module, don’t allow to reverse connect, and prohibit to connect with AC 220V.
Operate Type Prohibit to assemble module, cabinet and whole of display under power on, operation should be under power off completely, to protect personal safety; Prohibit anyone to touch when the LED display is working, in case the static electricity which is generated by body to break through LED and other components.
Dismantle and Transportation Don’t allow to throw, push, compress module, to prevent module falling down, to avoid breaking kit, damage LED chips, etc.
Environmental Inspection It should match temperature and humidity meter for LED display at installation site, to monitor its surrounding environment, so that it can find out if LED display being affected with damp, moisture, etc.
The Usage of LED display The environmental humidity should be 10%RH~65%RH, it is suggested to turn on LED display one time each day, normal to use above 4 hours each time, to remove its damp.
When the environmental humidity is above 65%RH, it should make dehumidification to environment, and it is suggested to work LED display above 8h each day.
When LED display has not turned on for a long time, it should preheat LED display to remove moisture before use, to avoid damage LED because of damp, the specific method: 20% brightness to work for 2h, 40% brightness to work for 2h, 60% brightness to work for 2h, 80% brightness to work for 2h, 100% brightness to work for 2h, by this to gradually increase its brightness.

Chapter 6  Acceptance Request and Method

Table 7-1  Acceptance Request and Method for LED Display
Item Acceptance Request and Method
Brightness of LED Display Switch LED display to work as full brightness, use light-gun to measure the brightness of LED display within 10 minutes. When measuring its brightness, the light-gun need be vertical to LED display, to adjust the distance of light-gun and LED display, ensure the view window, black area, cover above 16 pixels, adjust focal length, to ensure LED chip being able to clearly view in eyepiece, then measure and record brightness data.
Visual Angle The one should stand on the angle of 140°, bottom angle 65°to LED display when making measurement, it is requested that LED display should not have obvious the problem of dark block.



Chapter 7  Product Application

Suitable for advertising media, community publicity, enterprise display, tourist attractions, station advertising, roadside advertising and so on .

Outdoor advertising screen

Upright advertising screen

Scenic spot advertising screen
