Description

Chapter 1 Product Introduction

• Flexible curved led screen,cabinet,module
• Innovative fast self-locking mechanism arc adjustment more smoothly
• Dual soft modules more flatness
• Cabinet size:500*500*85mm
• Cabinet weight:7.5 kgs

Chapter 2 Structural Appearance

1.1 Module Pictures

modules(250*250mm)

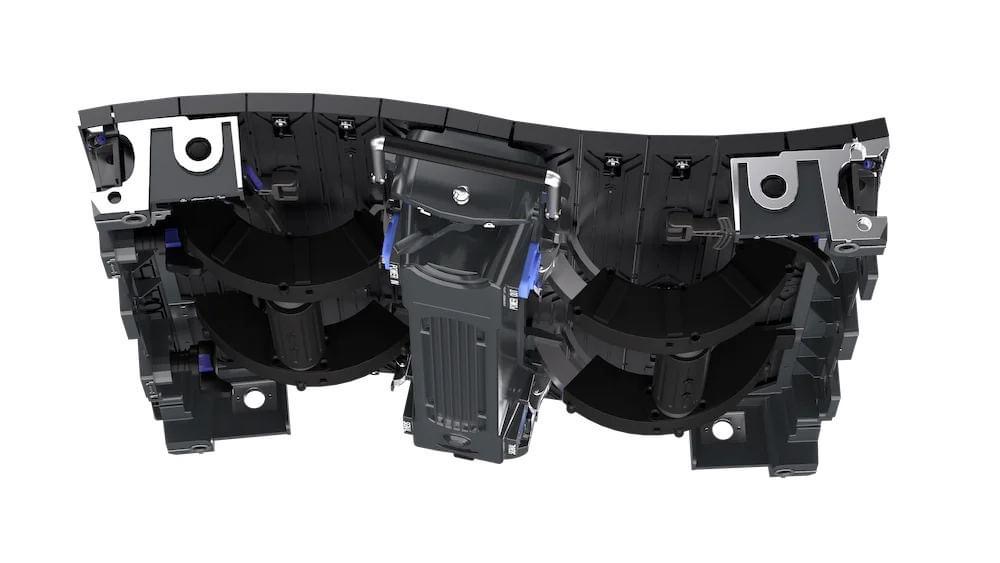

1.2 cabinet Pictures

Aluminium profiles cabinet (500*500mm)



One cabinet can make “S” Shape,which can meet the requirements of various and creative shapes.

1.3 Technical Parameters

Technical Parameters

Item	S1.56	S1.95	S2.6	S2.97		S3.91
Pixel Pitch(mm)	1.5625	1.953	2.604	2.976		3.91
Cabinet Resolution(W×H)	320×320	256×256	192×192	168×168		128×128
Cabinet Size(mm)	500×500 (85 thickness)
Module Qty/cabinet(W×H)	2×2
Cabinet Weight(kg/cabinet)	6.5
Cabinet Material	Aluminium profiles
IP Rating	Indoor IP20,Outdoor IP65
White Balance Brightness(nits)	Indoor 0~1200cd/m²,Outdoor 4000-6500cd/m²
Color Processor(bit)	12-16
Color Temperature(K)	6500-9000
Visual Angle(H/V)	150°/ 150°
Chromaticity uniformity	Within ±0.003Cx, Cy
Contrast Ratio	≥5000:1
The Max Power Consumption(W/m2)	650
Average Power Consumption(W/m2)	185
Input Voltage	AC100~240V
Frequency(Hz)	50&60
IC Driving(s)	1/40	1/32	1/32		1/28		1/16
Refreshing Ratio(Hz)	3840 (7680 optional)
Maintenance Method	Front
Lifespan(hrs)	100,000
Work Temperature/Humidity	-10℃-50℃/10%RH-98%RH (Non Condensing)
Storage Temperature/Humidity	-20℃-60℃/10%RH-98%RH (Non Condensing)

*Note: Maximum power consumption fluctuates by 10% depending on the batch of LED chips, and specifications are subject to change without notice.

1.4 Display Installation

Diagram for Connection

1.5 Networking Introduction

Topographic Picture for networking



Chapter 2 Application Field

It can be used for most of indoor & outdoor areas, such as stage performance, concert, business conference, etc.
