Description
Chapter 1 :- product description

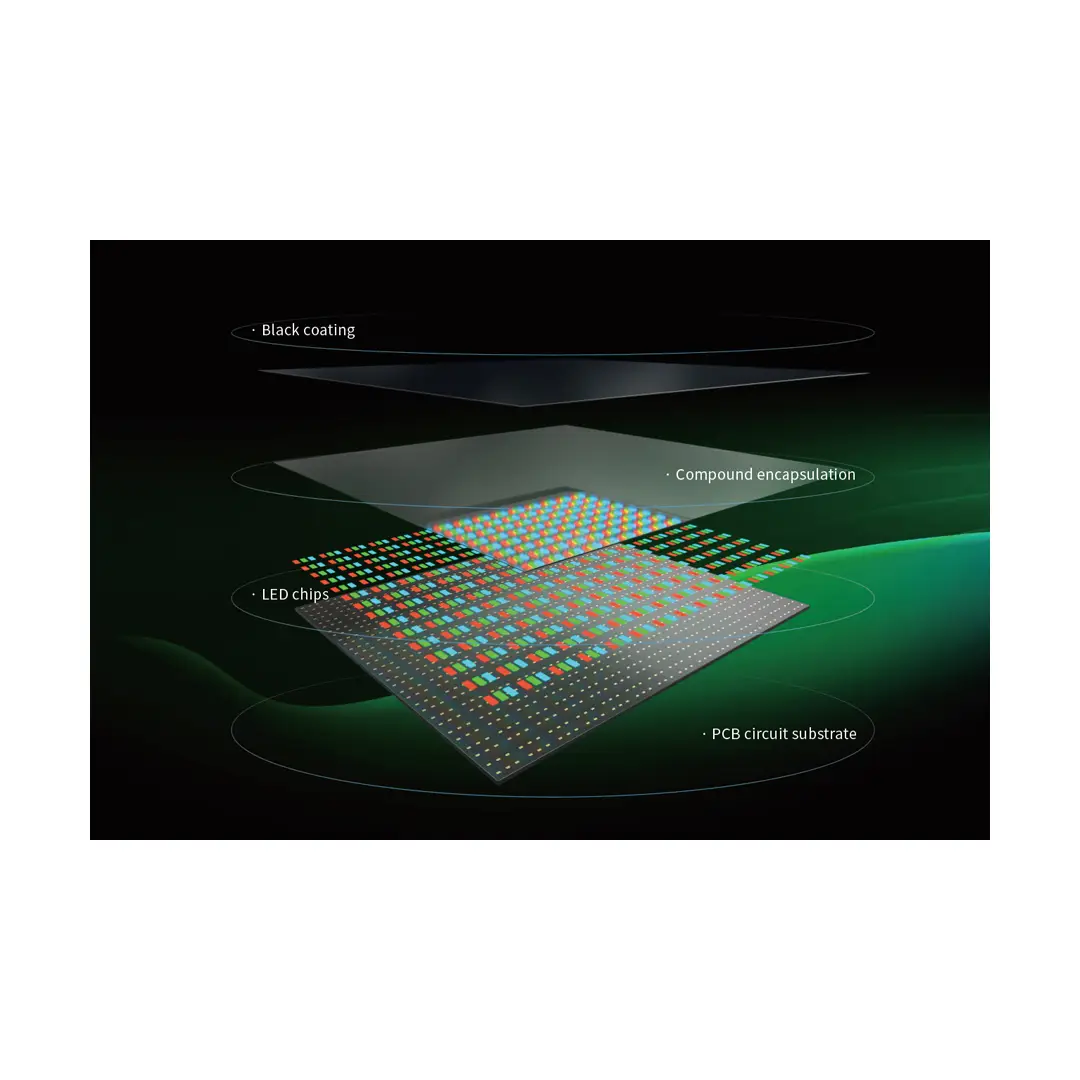

- Flip chip LED
High reliability full flip chip integrated package;
Use constant current to drive the chip, uniform light emission and low power consumption; High contrast can achieve good display effect;
Modular design is divided into two unit structures: display kit and display module - Aluminium profile cabinet structure
With light weight, corrosion resistance, high precision, good flatness, not easy to deform, good heat dissipation, etc., stronger and more durable than the sheet metal cabinet, aluminium profile structure through the finishing process, which can improve the screen splicing accuracy, screen consistency is better. - Ultra-light and ultra-thin
The thickness of the whole cabinet is 40mm, the weight is 6.5kg, which is easy to transport. The thickness of 40mm allows the panel to be attached to the wall or embedded in the wall, and blends in with the decorative style. - Quick Installation
Module automatic adsorption, cabinet quick-lock connection, can be installed against the wall without steel structure, support XYZ three-axis fine-tuning, installation is more convenient, saving manpower and material resources. - Full front maintenance design
Magnetic front maintenance design, all components support front-end maintenance, the adapter plate supports tool-less disassembly and installation, saving time, convenient and quick. - Stable and reliable
Module hard connection, no cable design, support dual card backup, dual power backup (optional), 4 network port input and output, more stable transmission effect.
Chapter 2 :- Structural Appearance
2.1 Module Pictures
picture 2.1 modules(250*250mm)
1.1 cabinet Pictures
picture 2.2 Aluminum profiles cabinet (600*337.5mm)
1.1 cabinet Pictures
picture 2.2 Aluminium profiles cabinet (600*337.5mm)
1.1 Technical Parameters
-
Technical Parameters
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
*Note: Maximum power consumption fluctuates by 10% depending on the batch of LED chips, and specifications are subject to change without notice.
Chapter 3:- Installation
1.1 cabinet Installation
Hole Installation Diagram for Kit
1.1 Display Installation
Diagram for Connection
1.1 Networking Introduction
Topographic Picture for networking
Chapter 4:- Application Field
It can be used in retail malls, hotels, transport hubs, commercial properties, conference rooms, exhibition displays, theme parks and other areas.
Shopping mall window screens
Meeting Room Smart Screen
rectangular screen
rectangular screen
canopy screen
