H Series COB LED Video Wall

H Series COB LED Video Wall

Item H0.62 H0.78 H0.935 H1.25 H1.56
Pixel Pitch(mm) 0.625 0.78 0.9375 1.25 1.5625
Cabinet Resolution(W×H) 960×540 768×432 640×360 480×270 384×216
Cabinet Size(mm) 600×337.5 (27 inches)
Module Qty/cabinet(W×H) 4×2
Cabinet Weight(kg/cabinet) 4.6
Cabinet Material Aluminium profiles
IP Rating IP54 Front,IP20 Back
White Balance Brightness(nits) 0~1200cd/m²
Color Processor(bit) 14-16
Color Temperature(K) 3000-10000
Visual Angle(H/V) 160°/ 160°

Description

Chapter 1 :- product description

  • Flip chip LED
    High reliability full flip chip integrated package;
    Use constant current to drive the chip, uniform light emission and low power consumption; High contrast can achieve good display effect;
    Modular design is divided into two unit structures: display kit and display module
  • Aluminium profile cabinet structure
    With light weight, corrosion resistance, high precision, good flatness, not easy to deform, good heat dissipation, etc., stronger and more durable than the sheet metal cabinet, aluminium profile structure through the finishing process, which can improve the screen splicing accuracy, screen consistency is better.
  • Ultra-light and ultra-thin
    The thickness of the whole cabinet is 40mm, the weight is 6.5kg, which is easy to transport. The thickness of 40mm allows the panel to be attached to the wall or embedded in the wall, and blends in with the decorative style.
  • Quick Installation
    Module automatic adsorption, cabinet quick-lock connection, can be installed against the wall without steel structure, support XYZ three-axis fine-tuning, installation is more convenient, saving manpower and material resources.
  • Full front maintenance design
    Magnetic front maintenance design, all components support front-end maintenance, the adapter plate supports tool-less disassembly and installation, saving time, convenient and quick.
  • Stable and reliable
    Module hard connection, no cable design, support dual card backup, dual power backup (optional), 4 network port input and output, more stable transmission effect.

Chapter 2 :- Structural Appearance

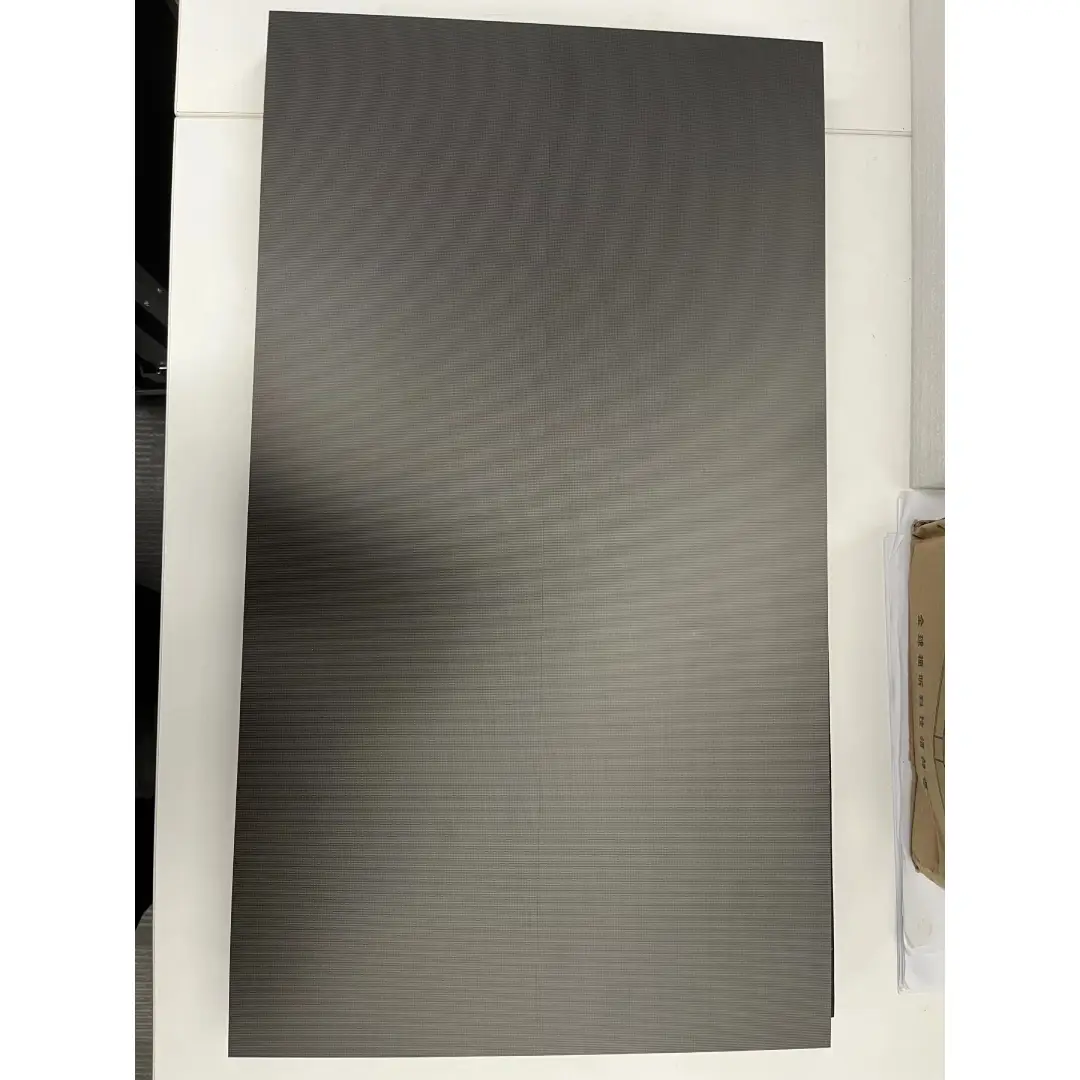

2.1 Module Pictures

picture 2.1 Aluminum profiles cabinet (600*337.5mm)

1.1 cabinet Pictures

picture 2.2 Aluminum profiles cabinet (600*337.5mm)

1.1 Technical Parameters

  • Technical Parameters
Item H0.62 H0.78 H0.935 H1.25 H1.56
Pixel Pitch(mm) 0.625 0.78 0.9375 1.25 1.5625
Cabinet Resolution(W×H) 960×540 768×432 640×360 480×270 384×216
Cabinet Size(mm) 600×337.5 (27 inches)
Module Qty/cabinet(W×H) 4×2
Cabinet Weight(kg/cabinet) 4.6
Cabinet Material Aluminium profiles
IP Rating IP54 Front,IP20 Back
White Balance Brightness(nits) 0~1200cd/m²
Color Processor(bit) 14-16
Color Temperature(K) 3000-10000
Visual Angle(H/V) 160°/ 160°
Chromaticity uniformity Within ±0.003Cx, Cy
Contrast Ratio ≥15000:1
The Max Power Consumption(W/p) 150 120 100 95 95
Average Power Consumption(W/p) 50-80 30-45 25-40 20-35 20-35
Input Voltage AC100~240V
Frequency(Hz) 50&60
IC Driving(s) 1/54 1/60 1/45 1/54 1/45
Refreshing Ratio(Hz) 3840 (7680 optional)
Maintenance Method Front
Lifespan(hrs) 100,000
Work Temperature/Humidity -10℃-40℃/10%RH-98%RH (Non Condensing)
Storage Temperature/Humidity -40℃-60℃/10%RH-98%RH (Non Condensing)

*Note: Maximum power consumption fluctuates by 10% depending on the batch of LED chips, and specifications are subject to change without notice.

Chapter 3:- Installation

1.1 cabinet Installation

Hole Installation Diagram for Kit



1.1 Display Installation

Diagram for Connection



1.1 Networking Introduction

Topographic Picture for networking

Chapter 4:- Application Field

It can be used in retail malls, hotels, transport hubs, commercial properties, conference rooms, exhibition displays, theme parks and other areas.

Shopping mall window screens

Meeting Room Smart Screen

rectangular screen

rectangular screen

canopy screen
